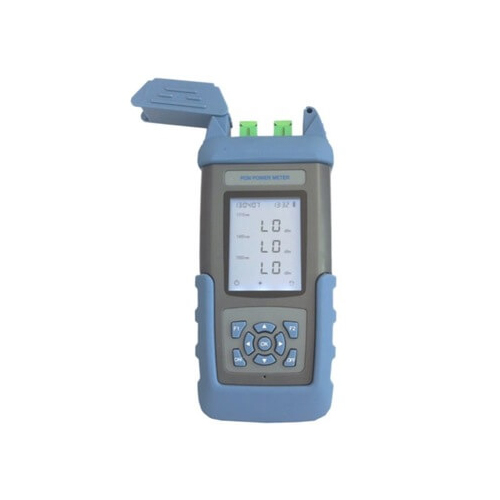

Senter ST800K-UA Power Meter With VFL:

With a wide range of functions, ST800K-UA optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.

ST800K-UA Optical Power Meter can test optical power within the range of 800~1700nm wavelength. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm, and six kinds of wavelength calibration points. It can be used for linearity and non-linearity tests and it can display both direct and relative tests of optical power.

This meter can be widely used in the test of LAN, WAN, metropolitan networks, CATV nets or long-distance fiber nets, and other situations.

1) Multi-wavelength precise measurement. 2) Absolute power measurement of dBm or μw. 3) Relative power measurement of dB. 4) Auto-off function. 5) 270, 330, 1K, 2KHz frequency light identification and indication. 6) Low voltage indication. 7) Automatic wavelength identification (with the help of a light source). 8) Store 1000 groups of data. 9) Upload test results by USB port. 10) Real-time clock display. 11) Output 650nm VFL. 12) Applicable to versatile adapters (FC, ST, SC, LC). 13) Handheld, large LCD backlight display, easy to use. Wavelength range (nm) 800~1700

Standard wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625

Power testing range (dBm): -50~+26 or -70~+10

Uncertainty: ±5%

Resolution: Linearity: 0.1%, Logarithm: 0.01dBm

Storage Capacity: 1000 groups

General specifications:

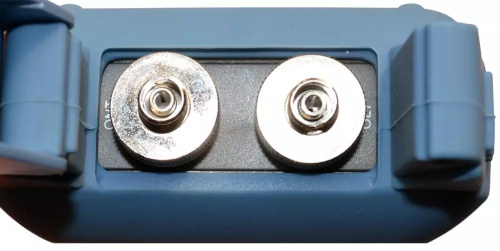

Connectors: FC, ST, SC, LC

Working temperature (°C): -10~+50

Storage temperature (°C): -30~+60

Weight (g): 430 (without batteries)

Dimension (mm): 200×90×43

Battery: 4 pcs AA batteries Or lithium battery

Battery working duration(h)

No less than 75 (according to battery volume)

Auto power off time (min): 10
