Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability Easily setup a highly secured wireless link with WPS™ (Wi-Fi Protected Setup) Read more
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.
*To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can find our latest drivers in the download center at tp-link.com/en/download-center.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
| Specifications | Descriptions |
|---|---|
| HARDWARE FEATURES | |
| Interface | PCI Express(x1) |
| Dimensions ( W x D x H ) | 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm) |

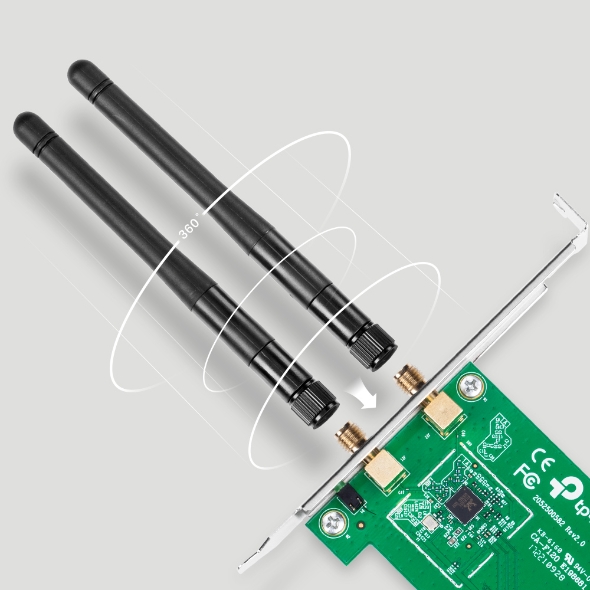

| Antenna | Detachable Omni Directional (RP-SMA) |
| Antenna Gain | 2dBi |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -73dBm@10% PER 54M: -73dBm@10% PER 11M: -89dBm@8% PER 6M: -87dBm@10% PER 1M: -90dBm@8% PER |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Transmission Power | <20dBm(EIRP) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | Wireless Adapter 2x Detachable Omni directional antenna Resource CD Quick Installation Guide |
| System Requirements | Windows 11/10/8.1/8/7,Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
