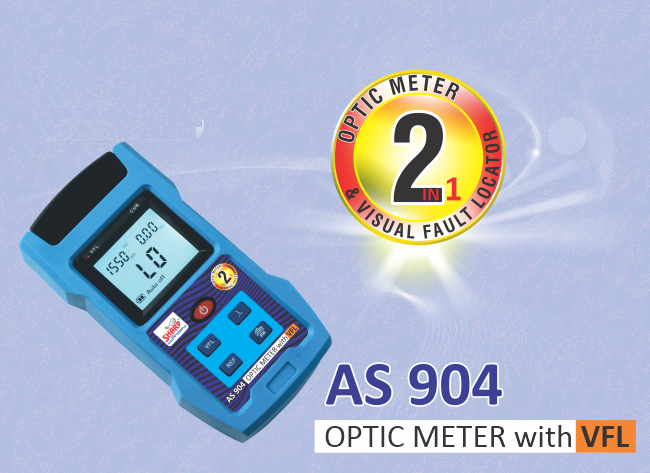

AS 904 Optic Meter with VFL is a must for installation & maintaining the Network. It's come with a Built in Visual Fault Locator for easy maintenance of your network. Read more

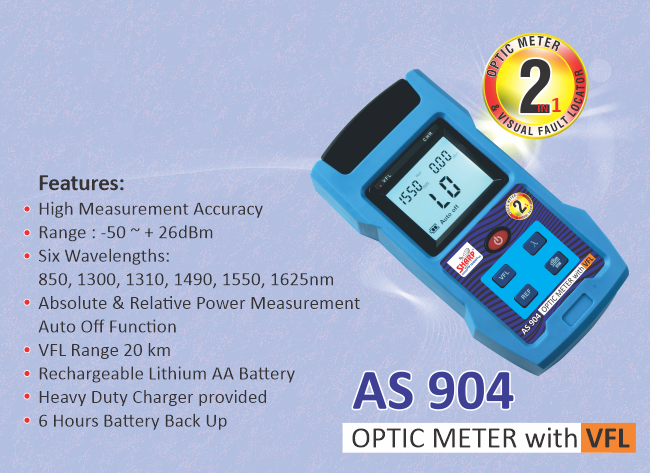

High Measurement Accuracy
- Range : -50 ~ + 26dBm
- Six Wavelengths:
850, 1300, 1310, 1490, 1550, 1625nm
- Absolute & Relative Power Measurement
- Auto Off Function
- VFL Range 20 km
- Rechargeable Lithium AA Battery
- Heavy Duty Charger provided
- 6 Hours Battery Back Up
| Specifications | Descriptions |
|---|---|
| Power Meter Specifications | Measurement Range: -50 to +26 dBm Calibrated Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm Detector Type: InGaAs Resolution: 0.01 dB Function: Absolute and relative power measurement |
| Visual Fault Locator (VFL) Specifications | Wavelength: 650 nm VFL Range: Up to 20 km Function: Locates fiber breaks, bends, or cracks by emitting a visible red light |
| General Specifications | Power Source: Rechargeable lithium AA battery Battery Backup: Up to 6 hours Display: Digital Auto Off Function: Yes Connector: Universal 2.5mm connector for ST, SC, and FC types |
