| Specifications | Descriptions |
|---|---|
| Wireless | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4 - 2.5GHz |
| WiFi Speeds | 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
| Reception Sensitivity | 270M: -70dBm@10% PER 130M: -72dBm@10% PER 54M: -74dBm@10% PER 11M: -87dBm@10% PER 6M: -92dBm@10% PER 1M: -94dBm@10% PER |
| Transmission Power | <20dBm |
| Wireless Security | WPA-PSK / WPA2-PS |
| Wireless Functions | EnablDisable Wireless Radio, WDS Bridge |
| Hardware | |
| Dimensions | 167 x 118 x 33 mm |
| Interfaces | 3 10/100Mbps LAN ports 1 10/100Mbps WAN port |
| Button | Reset button |
| External Power Supply | 5VDC/0.6A(V3.0) 9VDC/0.6A(V3.30) |
| Antenna Type | 4 x 5dBi fixed omni directional antennas |
| Software | |
| WAN Types | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Access control Local management Remote management |
| Port Forwarding | Virtual server, UPnP, DMZ |
| Dynamic DNS | Oray |
| Firewall Security | IP and MAC address binding |
| Protocols | IPv4 IPv6 |
| Guest Network | 2.4GHz guest network |
| DHCP | Server, DHCP Client List |
| Others | |
| Certifications | CE, ROHS |

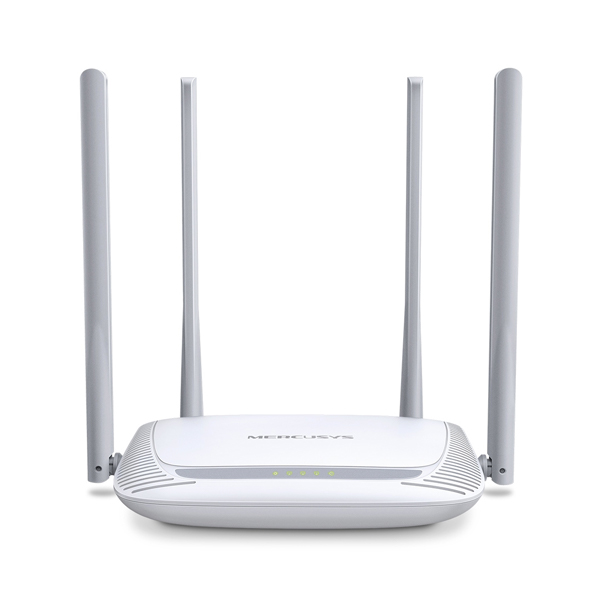

| Package Contents | 300Mbps Enhanced Wireless N Router MW325R Power adapter Quick installation guide RJ45 Ethernet cable |
| Environment | Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing |
