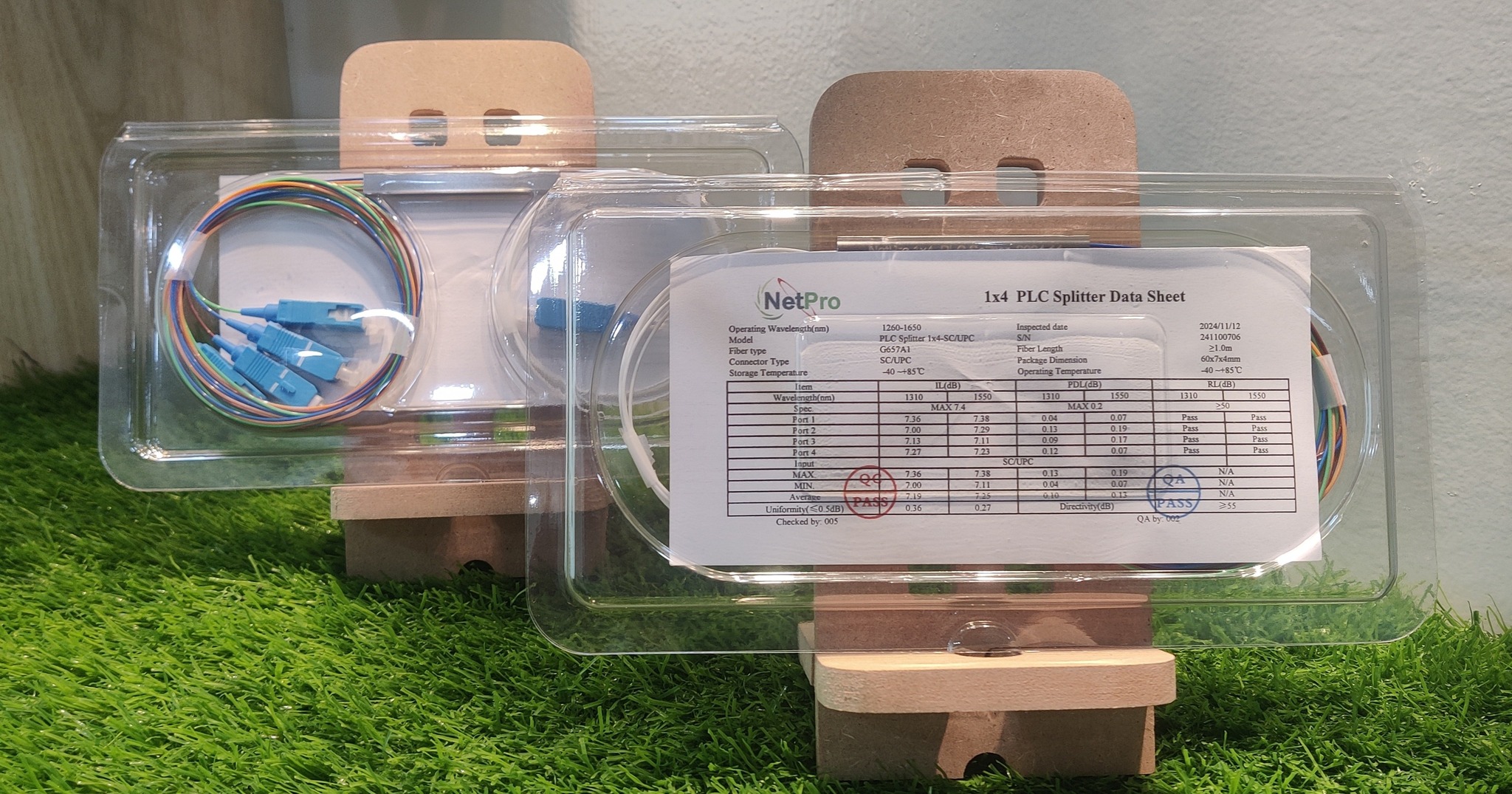

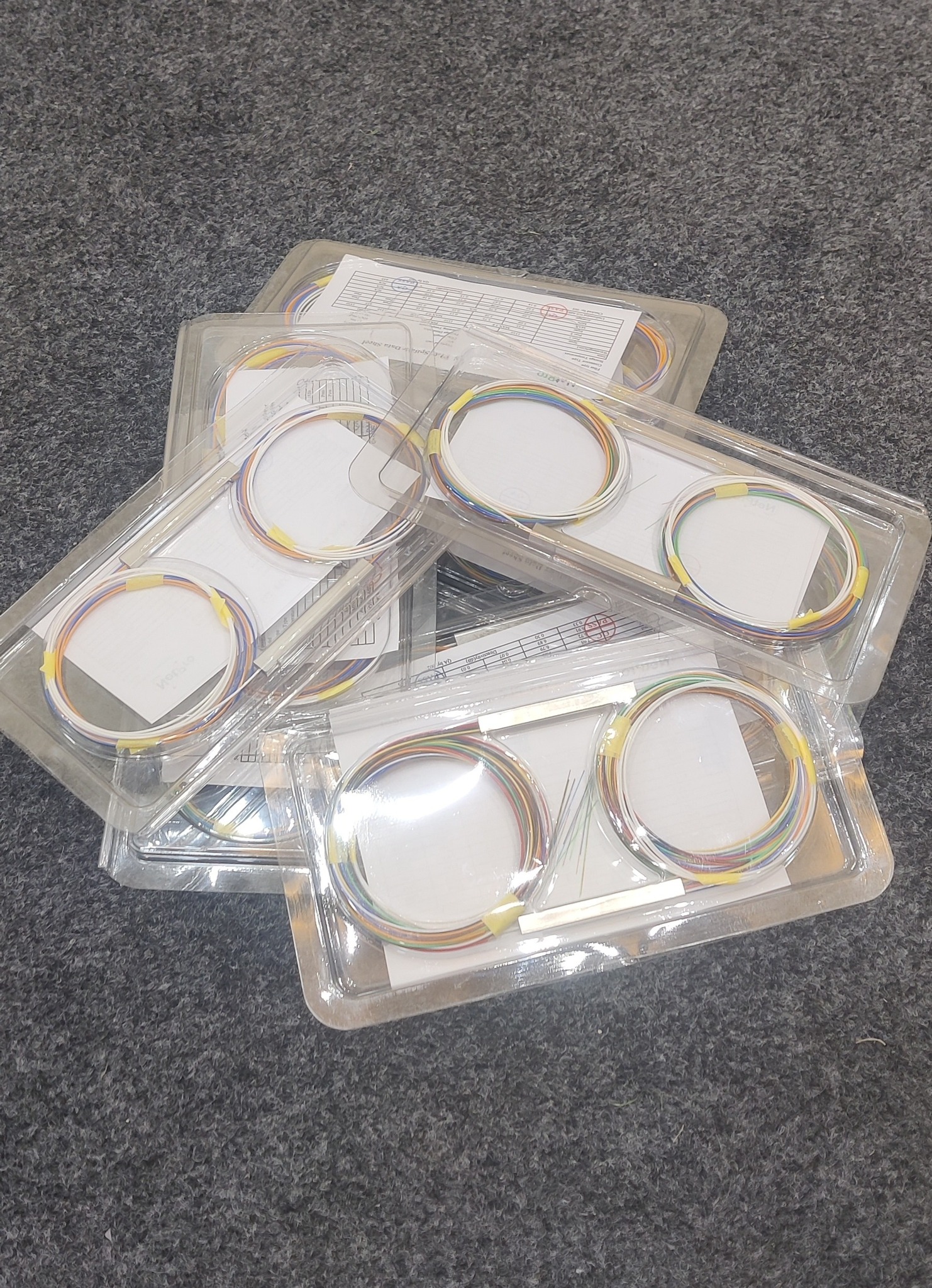

NetPro 1:4 optical splitter is a passive device that divides a single optical signal into four equal outputs, using Planar Lightwave Circuit (PLC) technology to ensure low insertion loss, low signal distortion, and consistent splitting across a wide wavelength range (typically 1260-1650 nm). These splitters are essential for distributing signals in applications like FTTH (Fiber to the Home), PON (Passive Optical Network), and other telecommunication and data communication networks. They can be found in various configurations, such as blockless modules or cassette-style units with different connector types (like SC/APC or LC/UPC), or as bare fiber for splicing. Read more
| Specifications | Descriptions |
|---|---|
| Operating Wavelength | 1260-1650nm |
| Insertion Loss (Max) | ≤7.1 dB to ≤7.4 dB |
| Uniformity (Max) | ≤0.6 dB to ≤0.8 dB |
| Polarization Dependent Loss (PDL) | ≤0.2 dB |
| Return Loss: | ≥55 dB |
| Fiber Diameter | Common options include 0.9mm, 2.0mm, or 250µm, depending on the product and application |
| Fiber Type | Often G.657A1 for single-mode fiber |
| Operating Temperature | -40 to 85°C |
