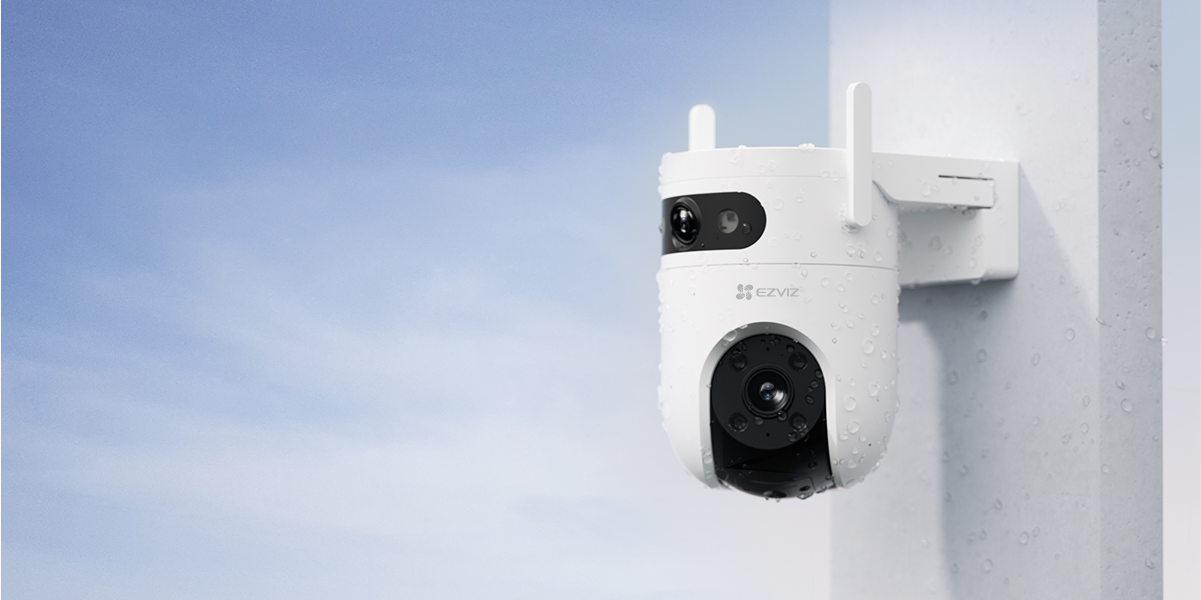

The new addition to EZVIZ’s highly acclaimed PT Series, the dual-lens H9c 2K demonstrates the future of security automation with multiple unique technologies. Its two cameras work interactively to protect larger areas with minimal manpower, achieving results comparable to a multi-camera system. It alerts to important events, follows ongoing activities, and patrols key locations from time to time – all automatically. Read more
| Specifications | Descriptions |
|---|---|
| Model | CS-H9c-R100-8H33WKFL |

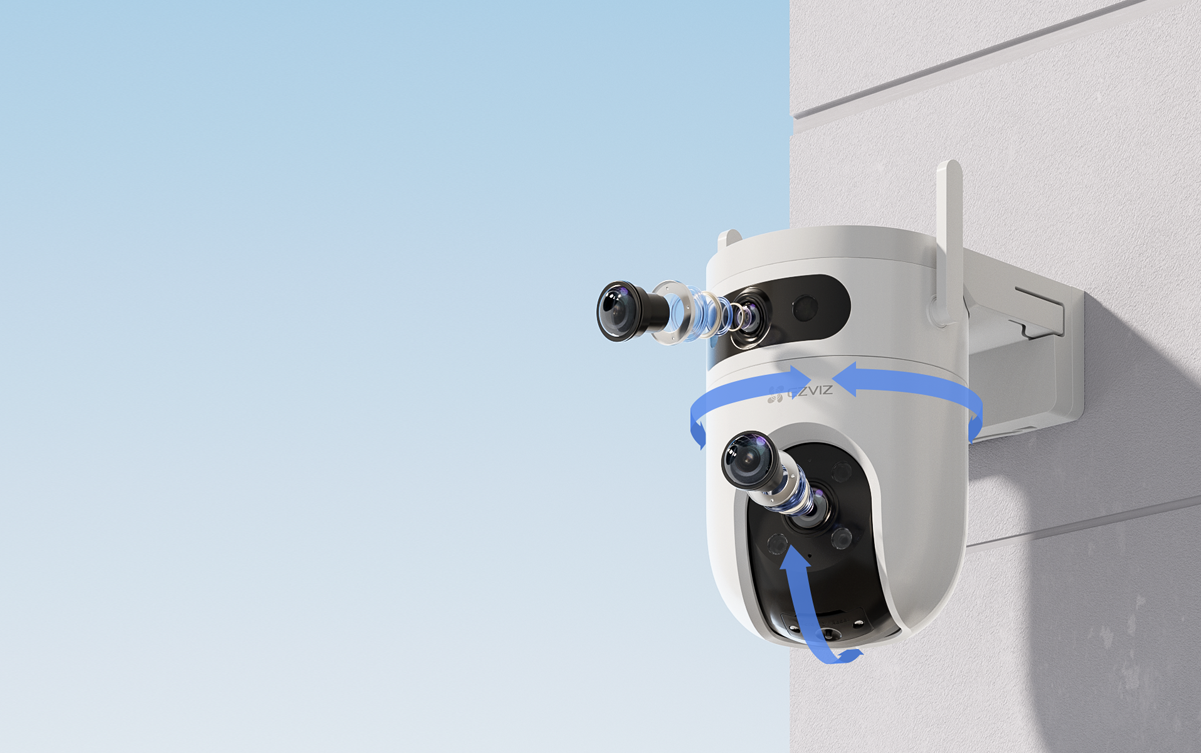

| Camera | Image Sensor 1/2.7" Progressive Scan CMOS Shutter Speed Self-adaptive shutter Lens Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28° PT Angle Pan: 350°, Tilt: 80° Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) Lens Mount M12 Day & Night IR-cut filter with auto-switching DNR 3D DNR WDR Digital WDR Black & White Night 30m / 98ft |
| Video & Audio | Max Resolution 2304 × 1296 Frame Rate Max:15fps; Self-Adaptive during network transmission Video Compression H.265 / H.264 H.265 Type Main Profile Video Bit Rate Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate. Audio Bit Rate Self-Adaptive |
| Network | Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth Supports 20MHz Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps Wi-Fi Pairing AP paring Protocol EZVIZ cloud proprietary protocol Interface Protocol EZVIZ cloud proprietary protocol Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port) Security WPA-PSK/WPA2-PSK |
| Functions | Smart Alarm AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection Auto Tracking Supports Customized Alert Area Supports Two-way Talk Supports Preset Locations Supports General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | Local Storage Supports microSD Card (Up to 512 GB) Cloud Storage Supports EZVIZ CloudPlay storage |

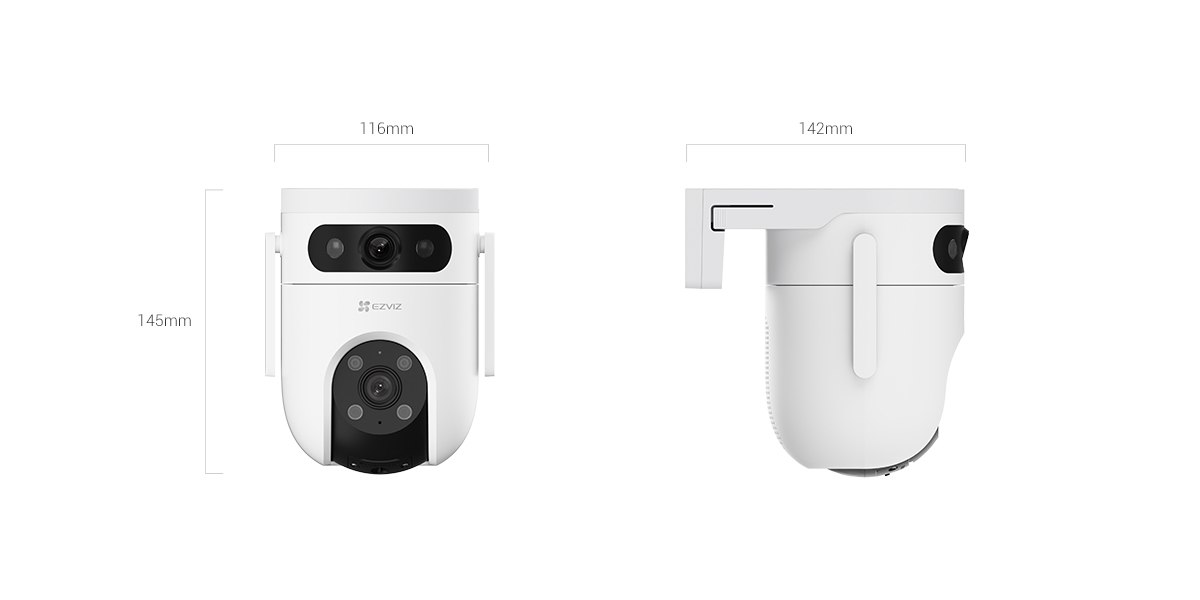

| General | Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) IP Grade Weatherproof Design Power Supply DC 12V/1.5A Power Consumption MAX. 12W Dimensions 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) Packaging Dimensions 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) Weight Net Weight: 668 g With Package: 960 g |
| In the box | H9c Camera - Drill Template - Screw Kit - Waterproof Kit - Power Adapter - Regulatory Information - Quick Start Guide |
| Certifications | CE / WEEE / RoHS / REACH |
