Panoramic View Photo Sensor Technology: Cmos 1080p Resolution IR Night Vision (Up to 10 m / 33 ft) Night Vision, Motion Detection Two-Way Talk Wi-Fi Camera View from Anywhere Sleep Mode for Privacy Protection Supports MicroSD Card (Up to 256 GB) & EZVIZ CloudPlay Storage Read more

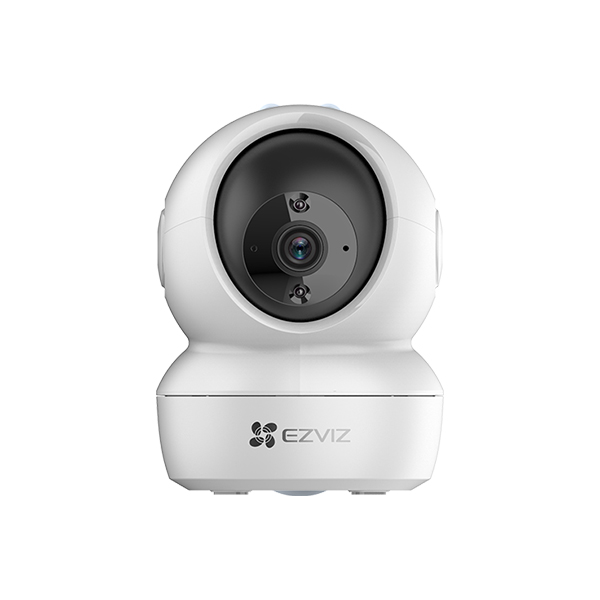

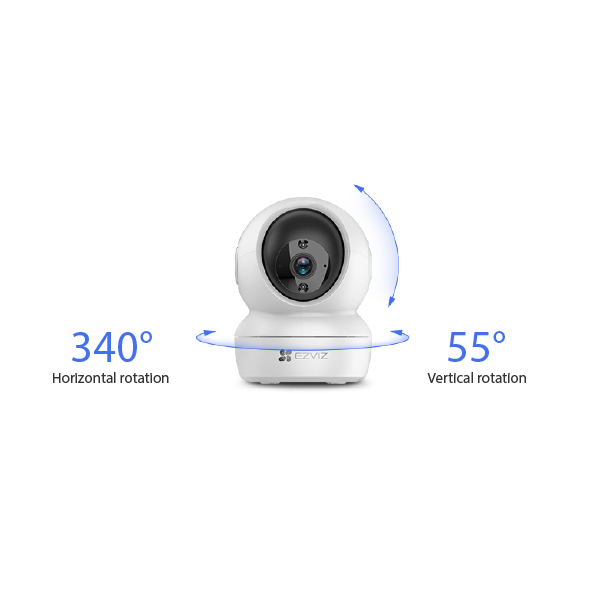

The Ezviz CS-H6C 2.0MP 1080P Smart Wi-Fi Camera provides crystal-clear surveillance with pan & tilt control and intelligent tracking. Perfect for reliable, high-quality security monitoring in Bangladesh.
| Specifications | Descriptions |
|---|---|
| Camera Specifications | |
| Model | CS-H6c-R101-1G2WF |
| Image Sensor | F2.4 @ 1/3″ Progressive Scan CMOS |
| IR Night Vision Distance | Up to 10 m (33 ft) |
| Lens | 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day & Night Switch | IR-cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 1080p, 1920 × 1080 |
| Frame Rate | Max: 15 fps; Self-Adaptive during network transmission |
| Video Compression | H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate |
| Storage | Local Storage Supports microSD card (Up to 256 GB) Cloud Storage Supports EZVIZ CloudPlay storage (subscription required) |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |

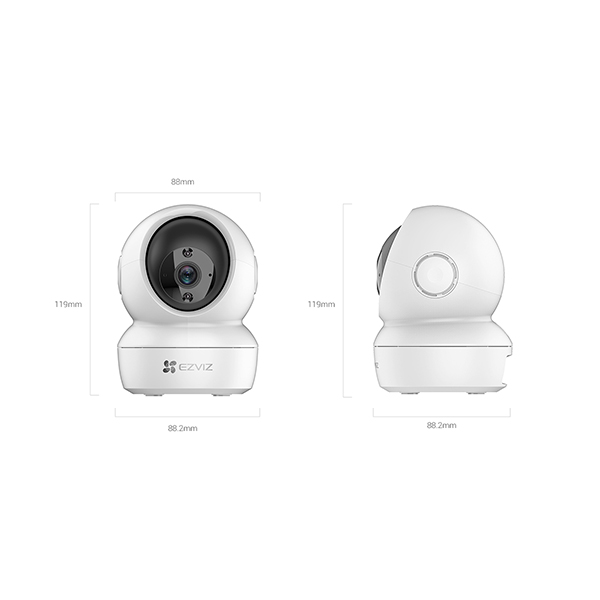

| General | Dimensions 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in) Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in) Net Weight 218 g (7.69 oz) Operating Conditions -10° to 45° C (14° to 113° F); Humidity 95% or less (non-condensing) |
| Power | Power Supply DC 5V / 1A Power Consumption Max. 5 W |
| In the Box | – H6c Camera – Base – Screw Kit – Power Cable – Drill Template – Power Adapter – Quick Start Guide – Regulatory Information |
| Certifications | CE / UL / FCC / WEEE / REACH / RoHS / UKCA |
